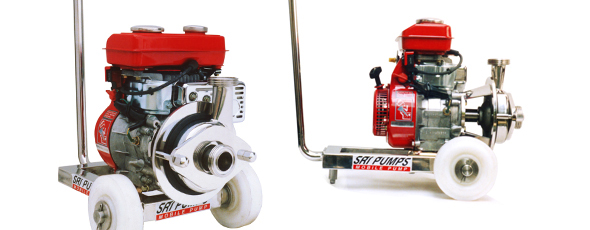

Engine Coupled Pumps (Mobile Pumps):
These Pumps meets the demands and obstinate requirement in hygienic to ensure the gentle product treatment. The main feature of this pump is its mobility, the pump is duly provided with an attractive SS Trolley with support, it can be carried anywhere and can be operated easily. The material construction of these pumps is SS 316G makes them more suitable for Food, Pharma, Cosmetic, Breweries and Milk Processing Industries. These Pumps meets the demands and obstinate requirement in hygienic to ensure the gentle product treatment, these pumps have low noise, simple, efficient and economic in design and are easy to maintain, these pumps can be run by Petrol, Kerosene or Diesel and are available in three models T-20, T-35, T-50.
Applications:
-
Civil, agricultural and Industrial water supplying system.
-
Making wine and Food system.
-
Central heating and air conditioner system.
-
Fire extinguisher system.
-
Main pipe pressurizing.
-
Cooling tower.
-
Cleaning system.
-
Swimming pool.
-
Transporting industrial liquid.
-
Draining and irrigating.
Specifications:
PUMP SPECIFICATIONS |
|||
| Pump type | T – 20 (2.0 HP) |
T – 35 (3.5 HP) |
T – 50 (5.0 HP) |
| Impeller | Ø 120 MM |
Ø 165 MM |
Ø 155 MM |
| Type of impeller | Open Impeller |
Semi Open Impeller |
Closed Impeller |
| Suction | 38 MM / Optional 51 MM |
51 MM |
51 MM |
| Discharge | 38 MM / Optional 51 MM |
51 MM |
51 MM |
| Frame size | 300 x 350 x 700 MM |
300 x 350 x 700 MM |
300 x 475 x 1500 MM |
ENGINE SPECIFICATIONS |
|||
| Engine Type | Side Valve, 4 Stroke, Air Cooled, Horizontal shaft, Single Cylinder |
||
| Displacement | 97 CC |
197 CC |
272 CC |
| Compression Ratio | 4.8 : 1.0 |
4.5 : 1.0 |
4.8 : 1.0 |
| Fuel | Petrol Start & Kerosene Run / Petrol start & Petrol run |
||
| Max. Horse Power | 1.8 HP (1.3 Kw) / 4200RPM |
3.6 HP (2.7 Kw) / 3600 - 4000RPM as per is : 7347 |
5.5 HP (3.97 Kw) / 3600RPM (SAE No.J607a) |
| Fuel tank Capacity | Kerosene – 1.5 Litres & Petrol – 0.25 Litres |
Kerosene – 3.9 Litres & Petrol – 0.4 Litres |
Kerosene – 5.2 Litres & Petrol – 0.4 Litres |
| Lubricating oil Capacity | 0.4 Litres |
0.7 Litres |
1.2 Litres |
| P.T.O Shaft Rotation | Counter clockwise from drive end |
||
| Dry Weight | 10.5 kg. |
18 kg. |
24.5 kg. |
| Dimensions | 275 x 263 x 340 MM |
338 x 404 x 423 MM |
383 x 405 x 464 MM (Q. Type) 373 x 407 x 464 MM (W. Type) |
| Starting | Recoil Start |
||
